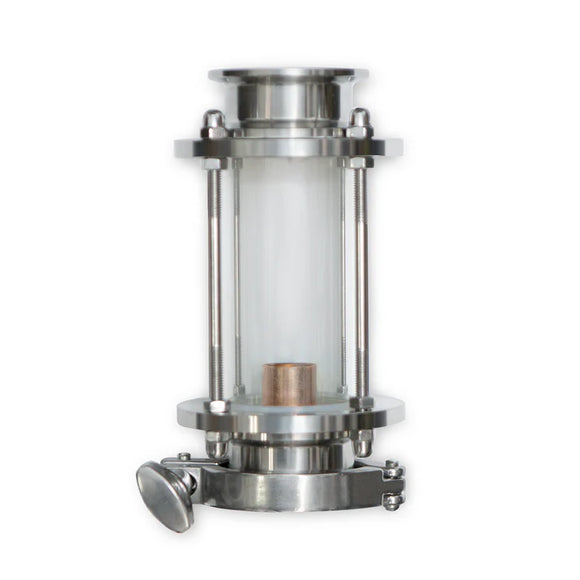

The Create+ Sight Glass Bubble Plate is designed for use with 2” tri-clamp compatible distilling systems. Bubble Plates are designed to promote reflux and provide visual feedback of the distillation process*. Sight Glass made from 304 grade stainless steel and borosilicate glass.
*Results may vary, depending on your individual set-up.
Compatible with any 2” tri-clamp distilling systems, including the Still Spirits T500 Reflux Attachment Kit and GF40/70 Distilling Lid and T500 Alembic Attachment Kit.
Key features:
- Connects to 2" tri-clamp distilling accessories
- Copper Bubble Plate with stainless steel guide ramp
- Sight Glass: Borosilicate & 304 grade stainless steel construction
- High temperature resistant food grade silicone
Cleaning: Clean with warm water and a suitable brewery cleaner. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. Sanitation is not needed in this application.

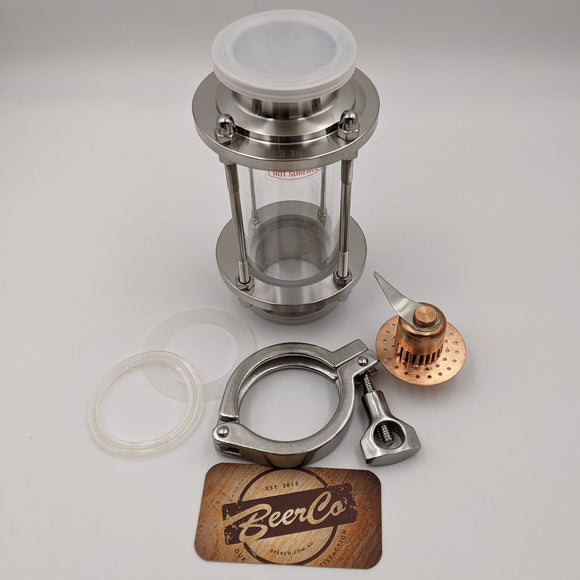

Kit Includes:
- Sight Glass
- Copper Bubble Plate with Silicone Flat Seal
- 2" Tri-clamp
- 2" Silicone Gasket
Dimensions: 167mm (h) x 51mm (w) x 51mm (d)
- Plate WT 1 mm, diameter Ø50.0±0.2. Perforations approx. Ø 2mm.
Weight: 1.12 kg
