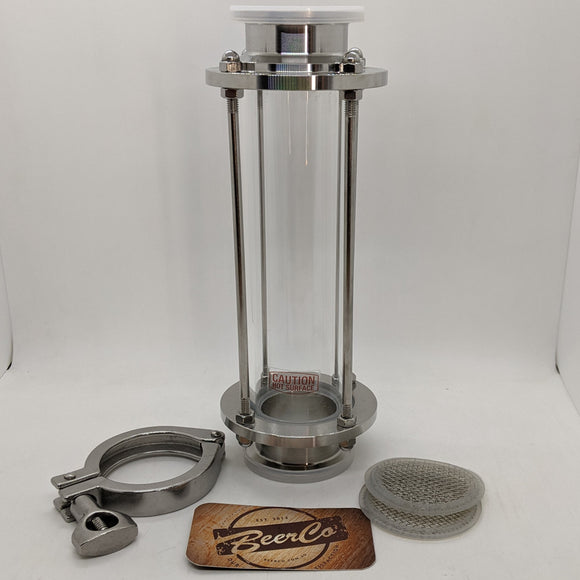

This high-quality sight glass botanical basket set is designed for use with 2” tri-clamp compatible distilling systems. This set can be used as a sight glass to monitor your distillation run or attach the mesh filters as per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals. Compatible with any 2” tri-clamp distilling systems, including the Still Spirits T500 Reflux Attachment Kit and GF40/70 Distilling Lid and T500 Alembic Attachment Kit.
Instructions:

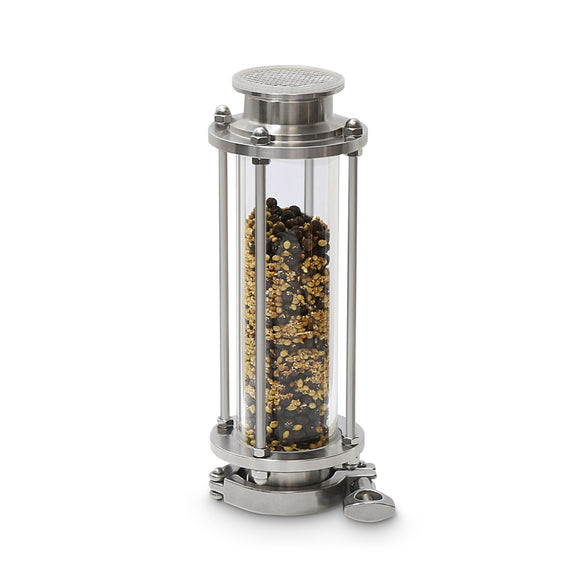

For use as a botanical basket:
- Attach the sight glass to the lid of your distilling system using one of the mesh filters and the 2” tri-clamp.
- Fill the sight glass with your desired amount of botanicals - up to a maximum of 150 g (5.2 oz).
- Put the second mesh filter on the top of the sight glass.
- Using a 2” tri-clamp connect the top of the sight glass to your condensing set up.
For use as a sight glass: Attach the sight glass to your distilling system (mesh filters are not required).
Cleaning: Clean with warm water and a suitable brewery cleaner. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. Sanitation is not needed in this application.
Note: For use as a column extension with packing material coarse mesh is required to prevent flooding.
CAUTION: After distillation is complete, the sight glass will be very hot. Allow to cool before handling

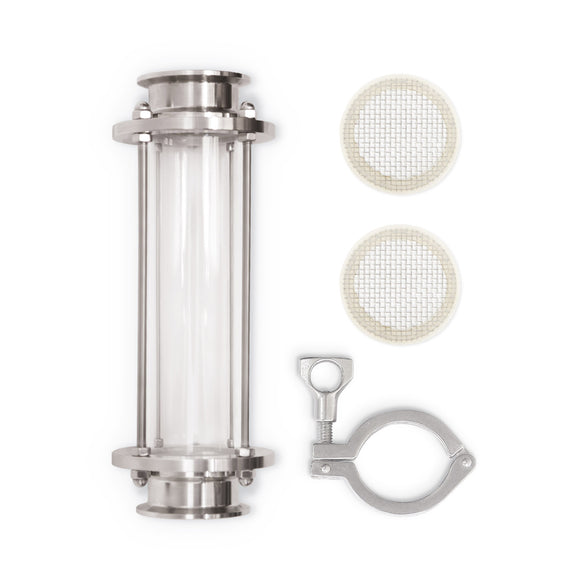

Kit Includes:
- 1 x Sight glass botanical basket with 2" tri-clamp ferrules
- 1 x 2” Tri-clamp
- 2 x Mesh filters (size 10)
Dimensions: 246mm (h) x 100mm (w) x 100mm (d)
Weight: 1.49 kg
