Replace cooling water with forced-air cooling. The Still Spirits VORTEX Air Cooled Condenser dissipates heat from vapour and liquid using air, offering an alternative to a water-cooled condenser in a compatible still configuration.
Cooling without a water supply

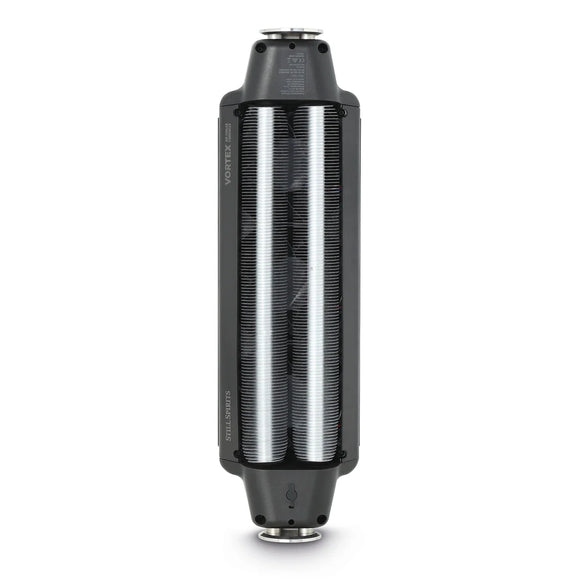

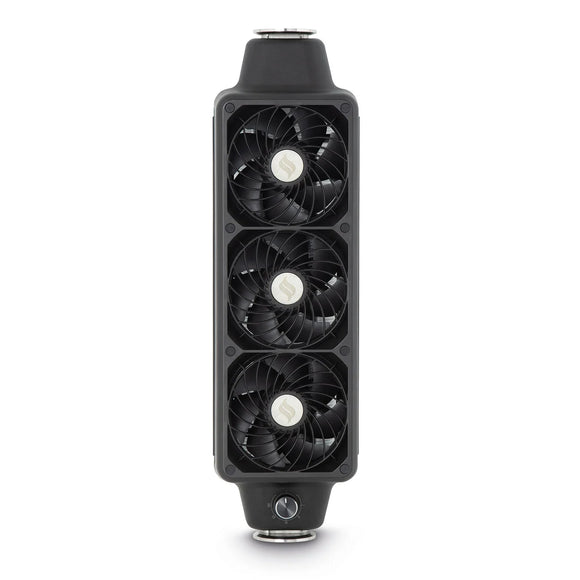

VORTEX removes the need for cooling water at the condenser, giving you more flexibility when positioning compatible equipment. Two internal tubes transfer heat to aluminium fins, while three integrated fans disperse the heat. Adjust the control dial to increase or decrease fan speed and heat dissipation.
Key features
- Forced-air cooling for vapour and liquid.
- Adjustable fan speed using a control dial.
- Two internal tubes, aluminium cooling fins and three integrated fans.
- Compatible with 2-inch tri-clamp setups and Still Spirits CREATE+ components.
- Can replace a water-cooled condenser in a compatible still configuration.
Specifications
- Brand: Still Spirits
- Model: VORTEX Air Cooled Condenser
- SKU: 57000
- Dimensions: H 16.1 cm × W 13.3 cm × D 60 cm
- Product weight: 2.2 kg
- Connection compatibility: 2-inch tri-clamp
- Cooling method: forced air, with three adjustable-speed fans
What's included
- VORTEX Air Cooled Condenser Module
- Universal Power Supply (NZ/AU, US/CA, UK, EU)
- Instruction Booklet
Gaskets and tri-clamps are sold separately.
Compatibility and support
Check your boiler, connection arrangement and required accessories before ordering. Still Spirits specifies the following limits for its Boiler Lid and Alembic Dome:
- Total column and condenser height up to 1.1 m from the lid or dome.
- Total column and condenser weight up to 11 kg, including up to 2 kg of off-centre weight offset up to 160 mm from the main column.
Use external support if your assembly exceeds these limits, if a lyne arm extends at an angle or perpendicular away from the column creating distant off-centre weight, or if the column and condenser noticeably lean.
Explore CREATE+ products
Browse other Still Spirits CREATE+ products in our shop. These are sold separately; check the connections and requirements for your intended configuration before ordering.
- CREATE+ Thermowell 90° Elbow Section
- CREATE+ Multi-Tube Condenser
- CREATE+ Vented Collection Cup
- CREATE+ 90° Elbow Section
- CREATE+ Alembic Copper Condenser
- CREATE+ Voltage Controller (NZ/AU)
- CREATE+ Sight Glass Bubble Plate
- CREATE+ Water Flow Regulator
- CREATE+ T500 Pro Column & Condenser
- CREATE+ Beeping Alarm Thermometer & Bracket
- CREATE+ Sight Glass Botanical Basket Set
- CREATE+ Alembic Copper Dome
Cleaning and care
Remove dust from the fan grille and finned tubes with a household vacuum cleaner. To clean the internal product pathway, follow the manufacturer's instructions for a cleaning distillation run using equal parts white vinegar and drinking water.
Caution: Metal fins can have sharp edges. Handle, assemble, clean and store carefully, and avoid running fingers along the fin surfaces.
VORTEX videos
Watch these videos for an overview, setup ideas and tips. Equipment kits shown in some videos are separate configurations, not the contents of this condenser module.
